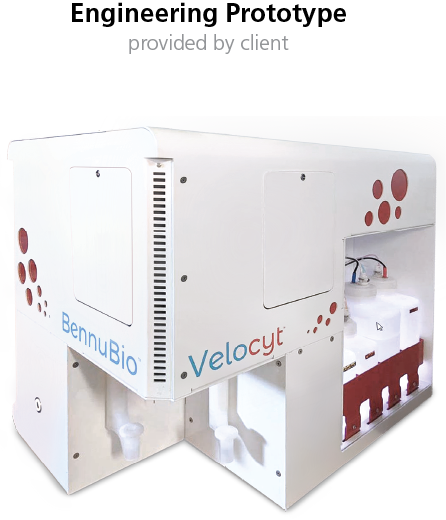

Visualization:

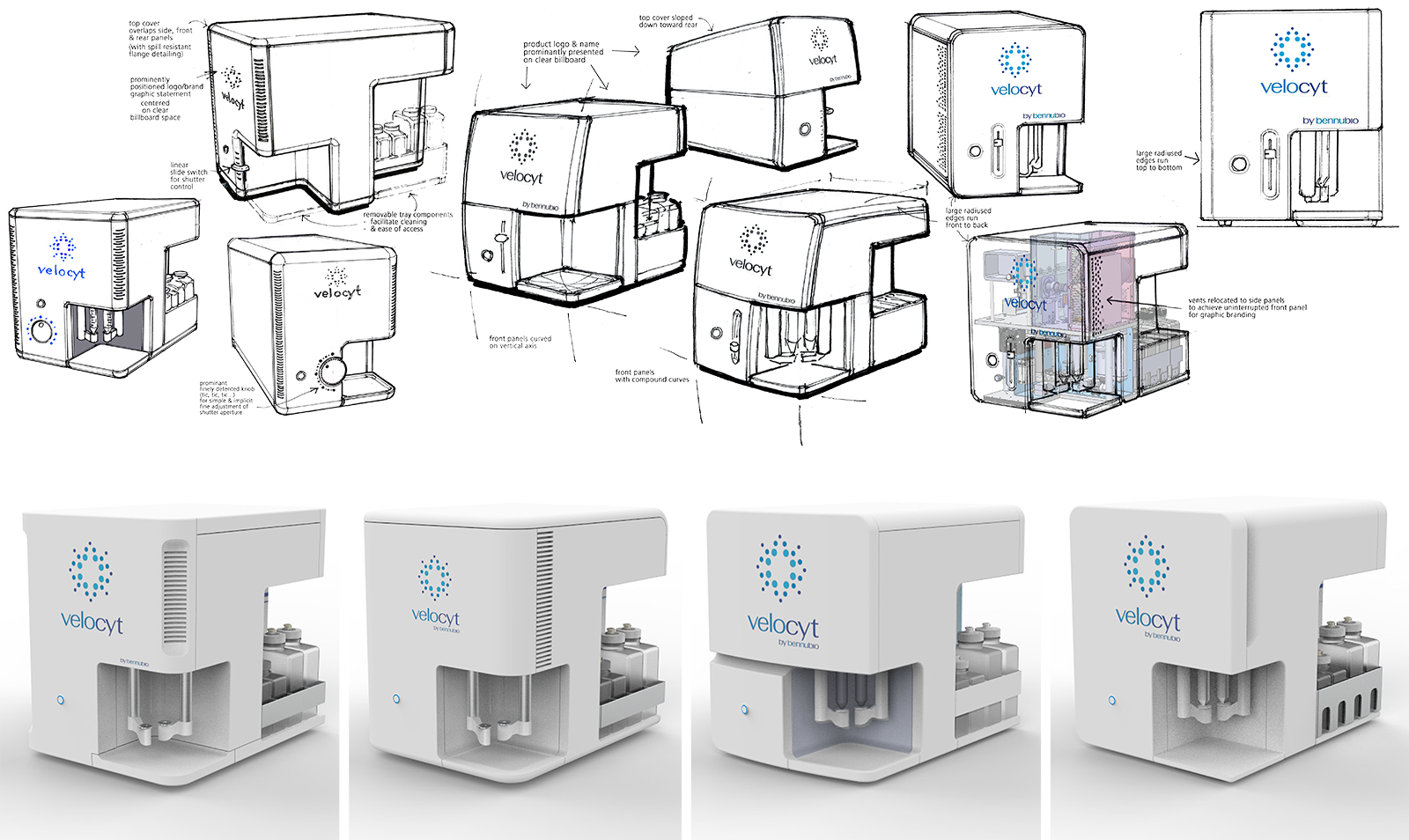

2D visionary sketches captured emerging aesthetic expressions as we concurrently consider overall enclosure configuration, forms, styling, features, graphics, venting, utility, service access... all factors essential to achieving a desirable and successful product. Sketches were prepared as tracings superimposed over CAD internal assemblies to approximate scale and proportions. Further evolved photorealistic rendered appearance studies were created to mix, refine and cull emerging conceptual approaches.

Resolution:

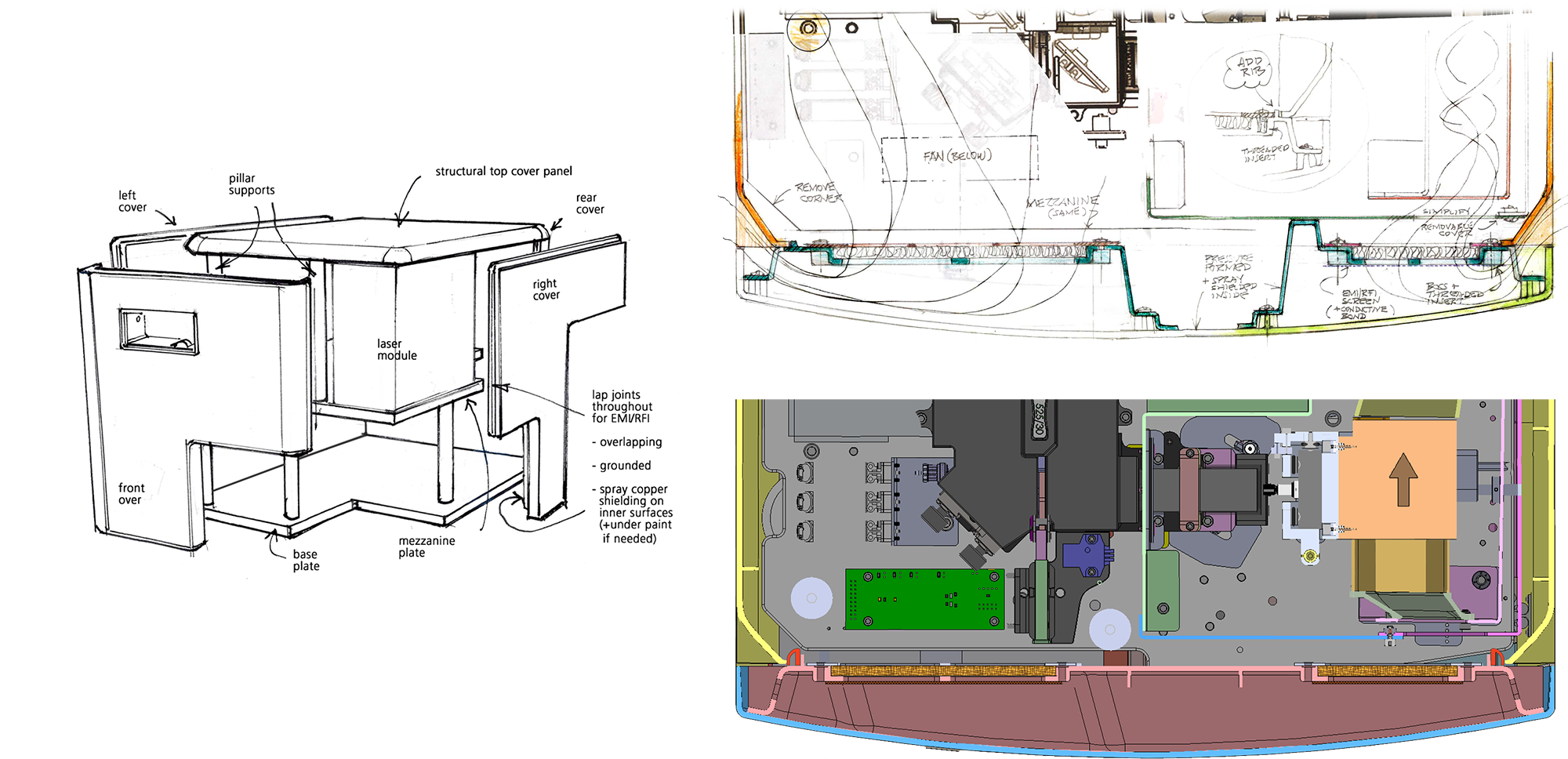

3D CAD models resolved integrated component detailing: mating frame fixations, fits, clearances, thermal flow, filtration, EMI/RFI shielding & gasketing... conceived and designed for manufacture and assembly.

Implementation:

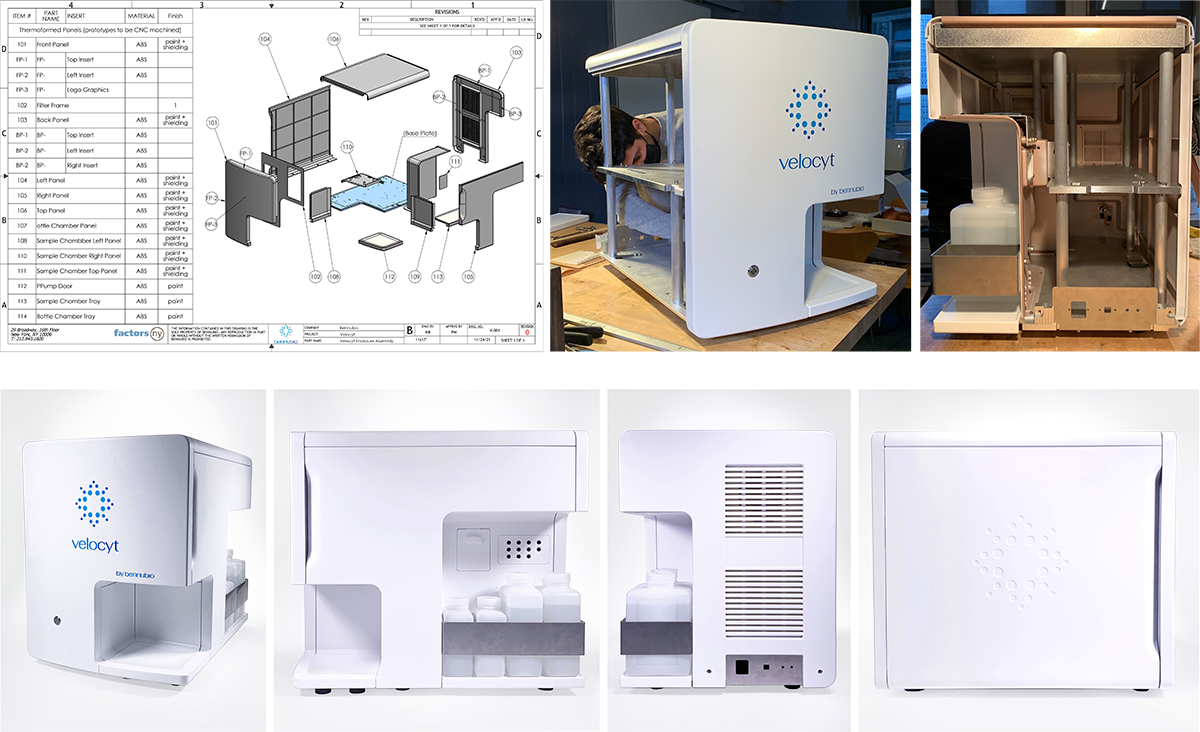

CAD geometry, part and assembly drawings were prepared for production quotations and to CNC machine, spray shield and paint Beta prototype enclosures... which were assembled at FactorsNY to verify fits and complete documentation.
